Laser Measuring System Configuration (Excel Precision) |
|
|
|
The
Leading Manufacturer of Laser Interferometers |
|
|
|
|
| 1001B Laser Head Specification |
1032B Signal Processor Card Spec. |
| - Dual Frequency He-Ne Zeeman Laser |
- 32 Bits Data Processing |
| - Wavelength 632.99137 nm |
- Resolution 10 nm or 0.4 micro inch |
| - 0.6 meter/second measuring speed |
- Position Differential Output |
|
|
|
| 1001B Laser Head Specification |

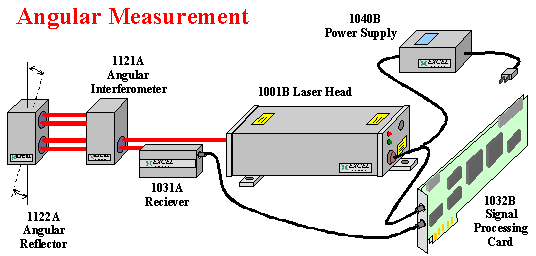

Angular Specification |
| - Dual Frequency He-Ne Zeeman
Laser |
-Resolution: 0.05 arc-seconds |
| - Wavelength is 632.99137nm |
-Accuracy : +/- 0.2% |
|
- Range : +/- 10 degree |
|
|
|
| 1001B Laser Head Specification |
1032B Signal Processor Card Spec. |
| - Dual Frequency He-Ne Zeeman Laser |
- 32 Bits Data Processing |
| - Wavelength 632.99137 nm |
- Resolution 10 nm or 0.4 micro inch |
| - 0.6 meter/second measuring speed |
- Position Differential Output |
|
| 1001B Laser Head Specification |
1032B Signal Processor Card Spec. |
| - Dual Frequency He-Ne Zeeman Laser |
- 32 Bits Data Processing |
| - Wavelength 632.99137 nm |
- Resolution 5 nm or 0.2 micro inch |
| - 0.3 meter/sec measuring speed |
- Position Differential Output |
|
|
| 1001B Laser Head Specification |
1032B Signal Processor Card Spec. |
| - Dual Frequency He-Ne Zeeman Laser |
- 32 Bits Data Processing |
| - Wavelength 632.99137 nm |
- Resolution : 40nm |
|
- Range : +/- 1.5mm with optics spacing
of 0.1 to 3M
|
|
|
|
